GE IS220UCSAH1A以*常用的單梁雙刀橫切機為例，根據浮法玻璃橫切機要求速度響應快，慣量大的特點，我們選用了siemens 1kf71高動態響應伺服電機通過α減速機帶動帶輪轉動來實現固定在同步帶上的刀架的運動。驅動器選用siemens masterdrives mc，主要是利用其“free block”以及f01工藝塊功能實現玻璃切割的運動控制在伺服驅動器中完成的目的，

廈門岳航計算機工程有限公司

聯系人：李素云

企業QQ：2851195446，2851195466

手機：18965423501

座機：0592-5165501

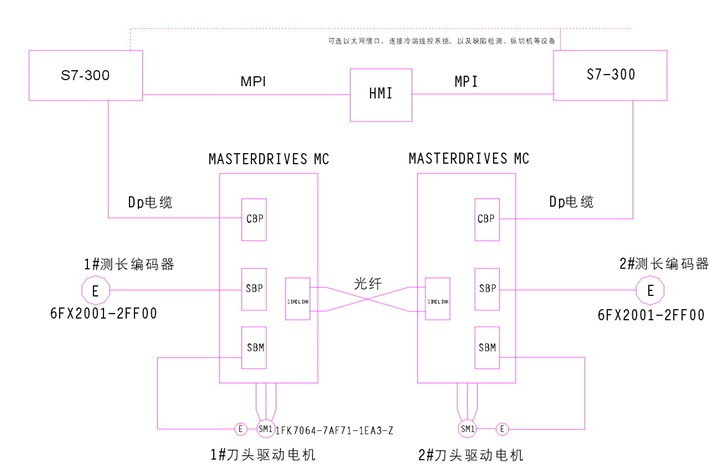

在mc中選用了sbp模板直接把測長編碼器信號引入mc中處理，選用cbp模板與s7-300 plc通訊，采用simolink模板以實現兩臺mc之間的數據交換與同步。每臺mc連接一套s7-300用于參數的傳遞換算以及落刀、切割以及橫掰動作的控制。plc與mc之間用dp方式通訊，滿足參數的實時傳遞的要求，plc與plc和觸摸屏之間采用mpi方式通訊。plc選用s7-300 313c-2dp，自帶16di/16do。hmi選用siemens tp270a(6av6643-0aa01-0ax0)，可靠性高，通訊方便，能實現比較豐富的人機界面功能。另外還可以根據情況選用工業以太網模塊來實現與其他相關設備的信息交換。具體硬件配置如圖3所示。
